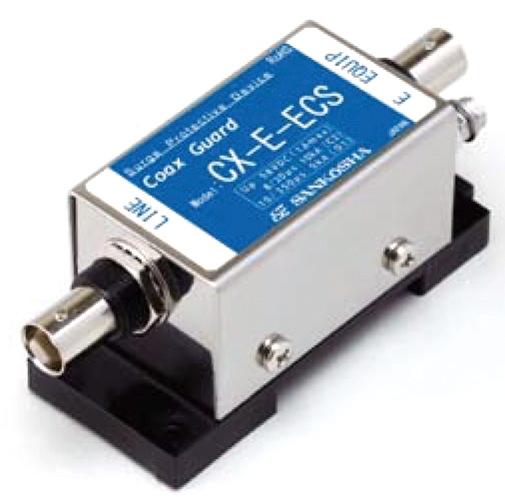

동축용 CX-E-ECS



제품사양

Item CX-E-ECS
최대지속동작전압 Uc(V~)
 DC58V
제한전압 Up(V~)kV
 250V or less (between conductors)/500V or less (to ground)
저항 50Ω/75Ω
Rated current
 1A
Impulse withstand voltage
Category C2 (8/20㎲) KA
 10kA (10 times)
mpulse withstand voltage
Category D1 (10/350 μs)KA		 5kA (2 times)
Connector type
 BNC (J-J)
Frequency bandwidth
 DC to 30 MHz
Insertion loss
 1.0dB or less
사용주위온도 ℃ Indoor -35℃ to +60℃

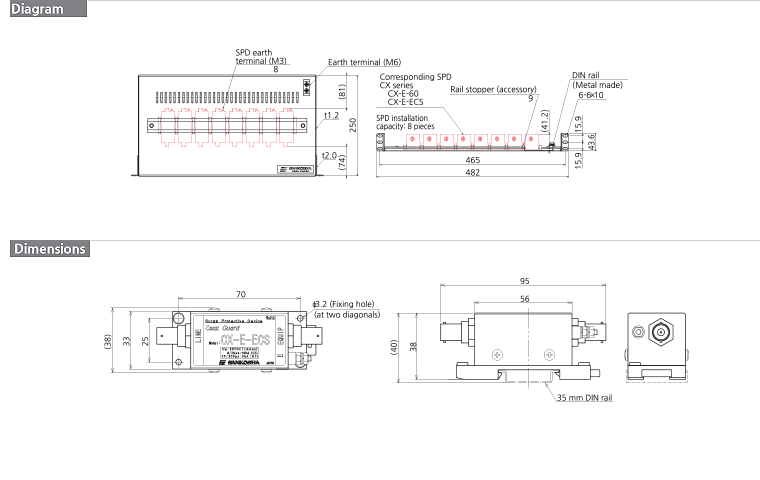

제품상세
