서지보호기 (SPD)

HOME > PRODUCTS > 서지보호기

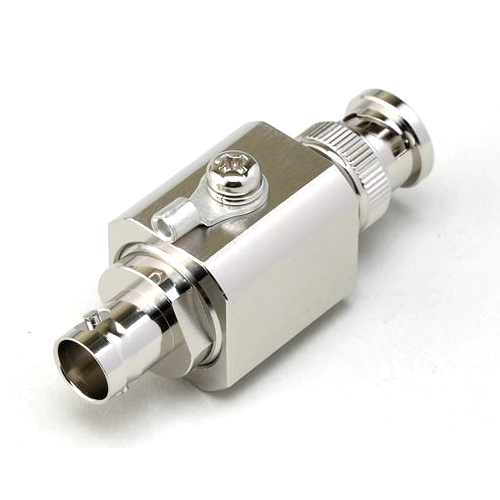

Item	B-JP-7	B-JP-8
최대지속동작전압 Uc(V~)	DC 180V or more
제한전압 Up(V~)kV	1.5 kV or less
저항	50Ω	75Ω
Permissible power	10W	50W
Impulse withstand voltage Category C2 (8/20㎲) KA	20kA (10 times)
Impulse withstand voltage Category D1 (10/350 μs)KA	2.5kA (2 times)
Connector type	BNC type (P-J)
Frequency bandwidth	DC to 1GHz	DC to 400MHｚ
