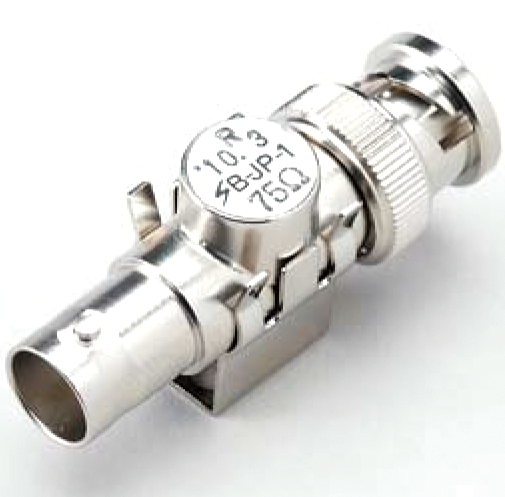

동축용 B-JP-1(50Ω / 75Ω)



제품사양

Item B-JP-1(50Ω) B-JP-1(75Ω)
최대지속동작전압 Uc(V~)
 DC58V
제한전압 Up(V~)kV
 1.5 kV or less
저항 50Ω 75Ω
Permissible power 50W
Impulse withstand voltage
Category C2 (8/20㎲) KA
 5kA (10 times)
Impulse withstand voltage
Category D1 (10/350 μs)KA		 1kA (2 times)
Connector type
 BNC type (P-J)
Frequency bandwidth
 DC to 1.6GHz DC to 400MHｚ
사용주위온도 ℃ -40℃ to +70℃ -40℃ to +70℃

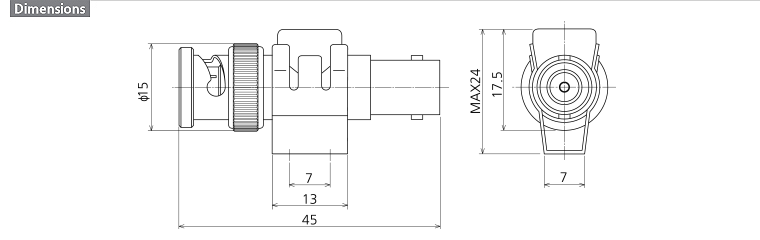

제품상세
