POE compatible

Shielded enclosure and connectors

2.5 kA discharge capability

UL497A

Item	MJ8-POE-A	MJ8-POE-B
최대. 데이터 속도	1000 Mbps	1000 Mbps
최대. DC 전원 공급 장치	60 Vdc - 650 mA	7.5 Vdc(1,2,3,6) - 650 mA 60 Vdc(4,5,7,8) - 650 mA
Pin outs	(1 - 2)(3 - 6) (4 - 5)(7 - 8)
공칭 방전 전류 - Line/Line - Line/Ground	< 500 A @ 8 / 20 μs 2000 A @ 8 / 20 μs
응용	PoE and Gigabit Ethernet Networks

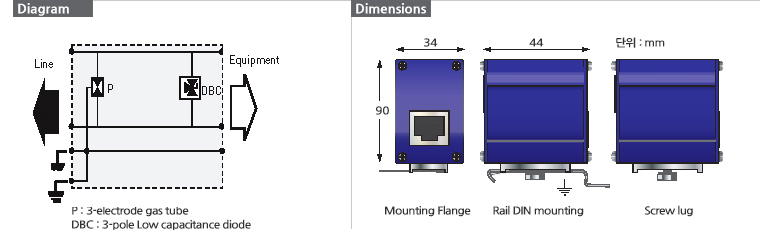

접지연결	Screw Lug, Din Rail Clip or Mounting Flange
관련규격(Standard Compliance)	IEEE 802 - 3af (transmission) IEC 61000 - 4 - 5 (surge withstand)
