전원용 DS250VG Series



Type 1 + 2 + 3 Surge protector
25 kA on 10 / 350 μs impulse
Low voltage Up
Internal disconnection, status indicator and remote signaling
Optimized to TOV
IEC 61643 - 11 and EN 61643 - 11 compliance UL 1449 ed. 3 recognitnio
VDE approved

제품사양

Item DS250VG-300 DS250VG-120
AC Network 230 / 400 V 120 / 208 V
최대연속동작전압 Uc
 255 Vac 150 Vac
전압보호수준 Up 1.5 kV 1 kV
공칭방전전류 In(8/20㎲) KA
 30 kA 30 kA
최대방전전류 Imax(8/20㎲)KA
 70 kA 70 kA
극수 Pole
 1, 2, 3, 4 Pole
Connection
 by screw terminals : 6 - 35 mm² / by bus
사용주위온도 ℃
 - 40 / +85 °C
사용주파수 Hz
 50 / 60 Hz
부착방식 Din - Rail 사용부착

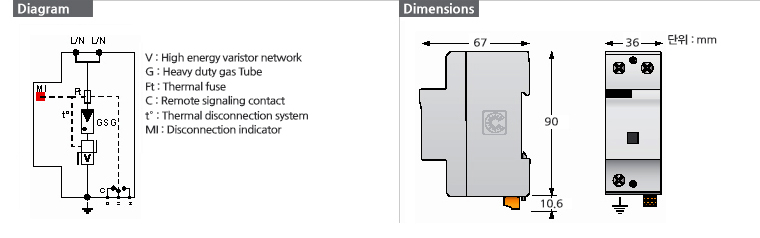

제품상세
